机器名称                         Name

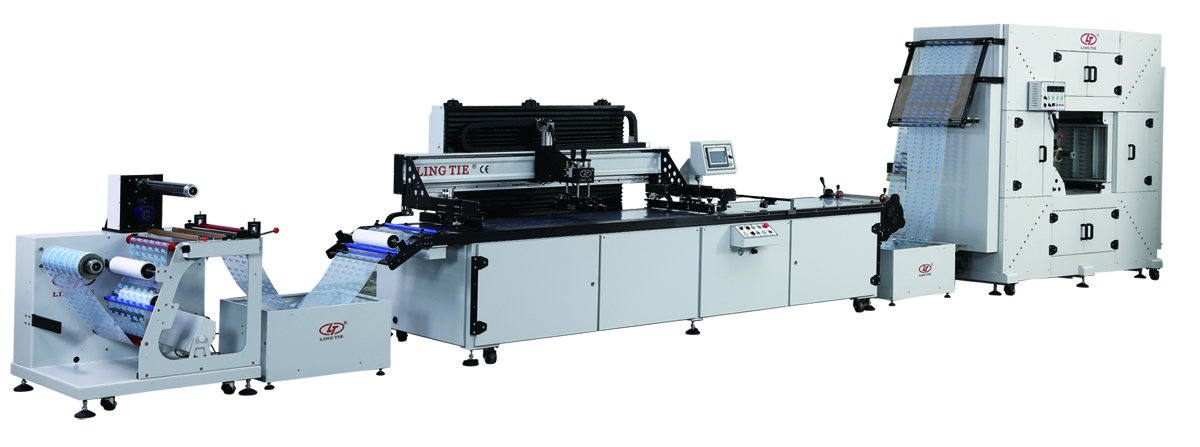

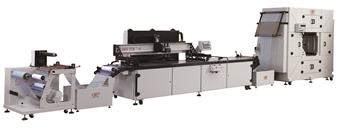

全自动丝网印刷机         Automatic screen printing machine

机台型号                         Model

LTA-7060

印刷面积                       Print Area

mm

700*600

印刷速度                     Print Speed

t/h

1-2500

网框面积               Screen Frame Area

mm

             1000*1000

最大纸宽                 Max.Paper Width

mm

720

气 源                         Air Source

mpa

0.4-0.6

电源 电压                         Power

V/W/A

单相220V 3KW 15A(可根据客户要求定制)

网框纵横节量     Frame Regulating Vareable

mm

60

承印物厚度      Printing Material Thickness

mm

0.02-0.5

净 重                            Weight

kg

                                     1000

装 箱                       Gross Weight

kg

1200

机械尺寸                    Machine size

mm

L2950*W1360*H1650

装箱尺寸                     Packing size

mm

L3050*W1460*H1800
